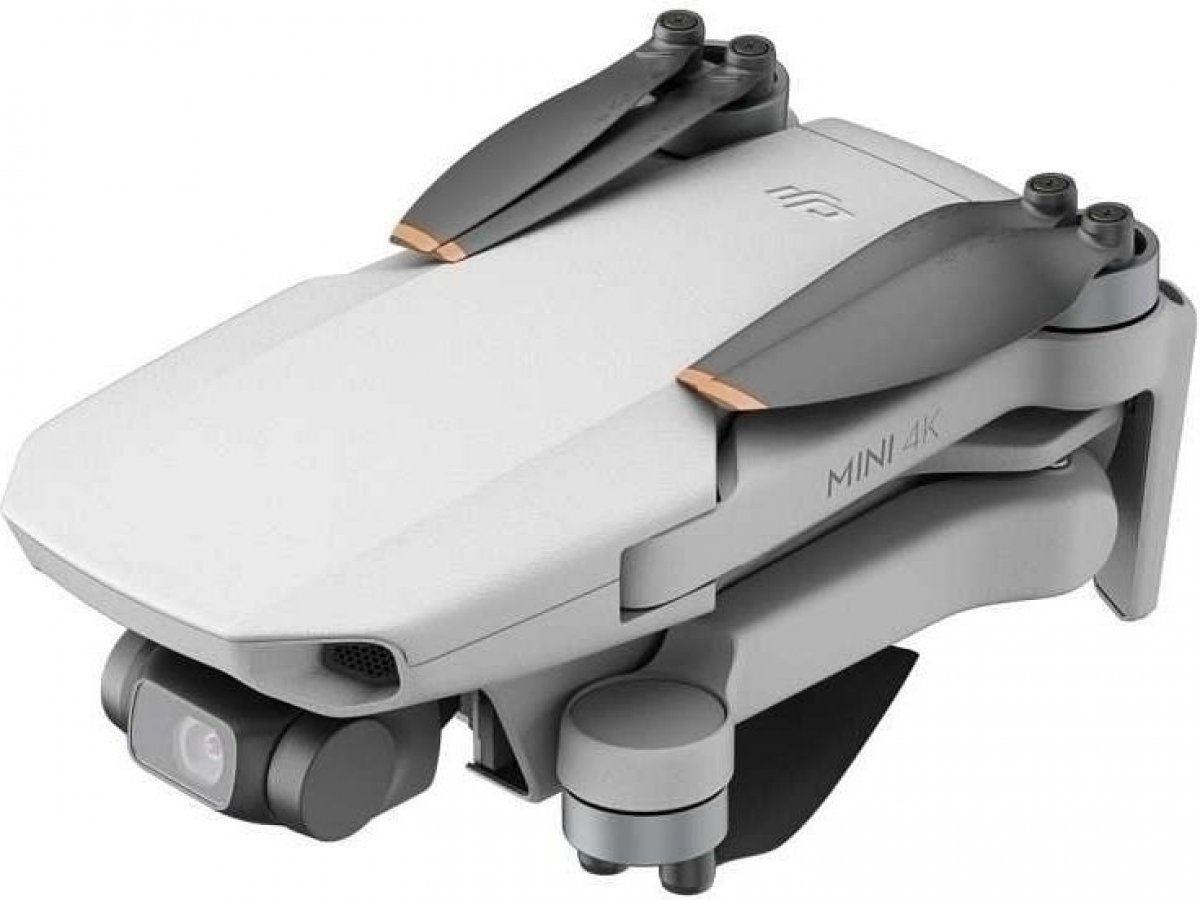

DJI Mini 4K CP.MA.00000798.01

Takeoff Weight
246 g
Standard aircraft weight (including the Intelligent Flight Battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors. Training or examination is not required for flying this product in most countries and regions. Always check local laws and regulations before use.

Dimensions
Folded (without propellers): 138×81×58 mm (L×W×H)
Unfolded (with propellers): 245×289×56 mm (L×W×H)

Max Ascent Speed
5 m/s

Max Descent Speed
3.5 m/s

Max Horizontal Speed (near sea level, no wind)
16 m/s
The max horizontal speed is subject to dynamic local restrictions. Please abide by local laws and regulations when flying.

Max Takeoff Altitude
4000 m
2000 m when taking off with propeller guards.

Max Flight Time
31 minutes
Measured in a controlled test environment. Specific test conditions are as follows: flying forward at a constant speed of 17 kph in a windless laboratory environment, in photo mode (without photo taking operation during flight), and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.

Max Hovering Time
No data

Max Flight Distance
No data

Max Wind Speed Resistance
10.7 m/s (Level 5)

Max Pitch Angle
40°

Operating Temperature
0° to 40° C (32° to 104° F)

Global Navigation Satellite System
GPS + GLONASS + Galileo

Hovering Accuracy Range
Vertical: ±0.1 m (with vision positioning) ±0.5 m (with GNSS positioning)

Horizontal: ±0.3 m (with vision positioning) ±1.5 m (with GNSS positioning)

Internal Storage
N/A

Image Sensor
1/2.3-inch CMOS, Effective Pixels: 12 MP

Lens
FOV: 83°
Format Equivalent: 24 mm
Aperture: f/2.8
Focus: 1 m to ∞

ISO Range
Video: 100-3200
Photo: 100-3200

Shutter Speed
Electronic Shutter: 4-1/8000 s

Max Image Size
4000×3000

Still Photography Modes
Single Shot: 12 MP
Timed: 12 MP
JPEG: 2/3/5/7/10/15/20/30/60 s
JPEG + RAW: 5/7/10/15/20/30/60 s
Automatic Exposure Bracketing (AEB): 12 MP, 3 frames at 2/3 EV step
Panorama: Sphere, 180°, and Wide Angle

Photo Format
JPEG/DNG (RAW)

Video Resolution
4K: 3840×2160@24/25/30fps
2.7K: 2720×1530@24/25/30/48/50/60fps
FHD: 1920×1080@24/25/30/48/50/60fps

Video Format
MP4 (H.264/MPEG-4 AVC)

Max Video Bitrate
100Mbps

Supported File System
FAT32 (≤ 32 GB)
exFAT (> 32 GB)

Color Mode
Normal

Digital Zoom
4K: 2×
2.7K: 3×
FHD: 4×

Mechanical Range
Tilt: -110° to 35°
Roll: -35° to 35°
Pan: -20° to 20°

Controllable Range
Tilt: -90° to 0° (default) -90° to 20° (extended)

Sensing Type
Downward visual sensing

Forward
N/A

Backward
N/A

Lateral
N/A

Upward
N/A

Downward
Precise Hovering Range: 0.5-10 m

Video Transmission System
DJI O2

Live View Quality
Remote Controller: 720p/30fps

Operating Frequency
2.400-2.4835 GHz
5.725-5.850 GHz

Transmitter Power (EIRP)
2.400-2.4835 GHz: ≤ 26 dBm (FCC) ≤ 20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz: ≤ 26 dBm (FCC/SRRC) ≤ 14 dBm (CE)

Max Transmission Distance (free of interference)
FCC: 10 km
CE: 6 km
SRRC: 6 km
MIC: 6 km
Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminders in the DJI Fly app.

Max Transmission Distance (with interference)
Strong Interference: Urban landscape, approx. 1.5-3 km
Medium Interference: Suburban landscape, approx. 3-6 km
Low Interference: Suburb/seaside, approx. 6-10 km
Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual flight distance.

Max Download Speed
No data

Lowest Latency
Approx. 200 ms
Depending on the actual environment and mobile device.

Antennas
No data

Capacity
2250 mAh

Weight
82.5 g

Nominal Voltage
7.7 V

Max Charging Voltage
8.8 V

Type
Li-ion

Energy
17.32 Wh

Charging Temperature
5° to 40° C (41° to 104° F)

Charging Time
No data

Max Operating Time
DJI RC-N1C Remote Controller
Without charging any mobile device: 4 hours
When charging a mobile device: 2 hours

Max Supported Mobile Device Size
DJI RC-N1C Remote Controller
180×86×10 mm (L×W×H)

Operating Temperature
DJI RC-N1C Remote Controller
-10° to 40° C (14° to 104° F)
